VyntX Vision Core
From Electrical and Mechanical Drawings to Reviewed Takeoff Output in Under 10 Minutes.
AI-assisted extraction with human-reviewed validation, built for real construction drawing packages.
The system proposes. The user confirms.
Controlled Engineering Intelligence
Move from Drawing Complexity to Reviewed, Structured Output.
VyntX Vision Core helps estimators, contractors and engineering teams interpret complex construction drawings and convert relevant information into structured takeoff data.
The system assists with repetitive extraction and data preparation. Your team remains in control of review, correction and final approval. VyntX Vision Core is designed to reduce repetitive interpretation work while preserving the professional judgement required in real construction workflows.
Controlled Engineering Intelligence
AI-assisted. Human-reviewed.Built for engineering control.
01
Under 10 Minutes
Move from drawing upload to reviewed takeoff output in under 10 minutes for suitable drawing packages.
02
Engineered for Real Drawings
Built around real electrical, mechanical and building-services drawing conditions.
03
You Stay in Control
01
Structured and Exportable
Performance note · The under-10-minute statement refers to suitable drawing packages and active workflow time. Actual processing and review time may vary depending on drawing quality, complexity and the level of user validation required.
The Work Before Estimating
The Industry Does Not Have a Counting Problem. It Has an Information Problem.
Before a drawing package can be priced, procured or delivered, someone must interpret the information inside it.
Drawings must be reviewed. Legends must be understood. Similar symbols must be distinguished. Notes, revisions and assumptions must be checked. The information must then be converted into structured data that estimators and project teams can use.
Much of this work remains repetitive and manual, even when the drawings themselves are digital.
The Work Before Estimating
01
Repetitive symbol identification and manual counting
03
05
02
04
06
The Work Before Estimating
The Industry Does Not Have a Counting Problem. It Has an Information Problem.
Before a drawing package can be priced, procured or delivered, someone must interpret the information inside it.
Drawings must be reviewed. Legends must be understood. Similar symbols must be distinguished. Notes, revisions and assumptions must be checked. The information must then be converted into structured data that estimators and project teams can use.
Much of this work remains repetitive and manual, even when the drawings themselves are digital.
The system proposes. The user confirms.
Stage 01
The System Proposes
Stage 02
The User Reviews
Stage 03
The User Corrects
Stage 04 Decision point
The User Confirms
Human review against the source drawing before the output is approved.
The Work Before Estimating
The Industry Does Not Have a Counting Problem. It Has an Information Problem.
Step 01 · Upload the Drawings
01
Upload the Drawings
Upload the relevant drawing package and prepare it for assisted processing.
Step 02 · Interpret and Calibrate
02
Interpret and Calibrate
Step 03 · Detect and Structure
03
Detect and Structure
Step 04 · Review and Correct
04
Review and Correct
05
Confirm the Output
Current MVP Preview
See the Workflow in Action

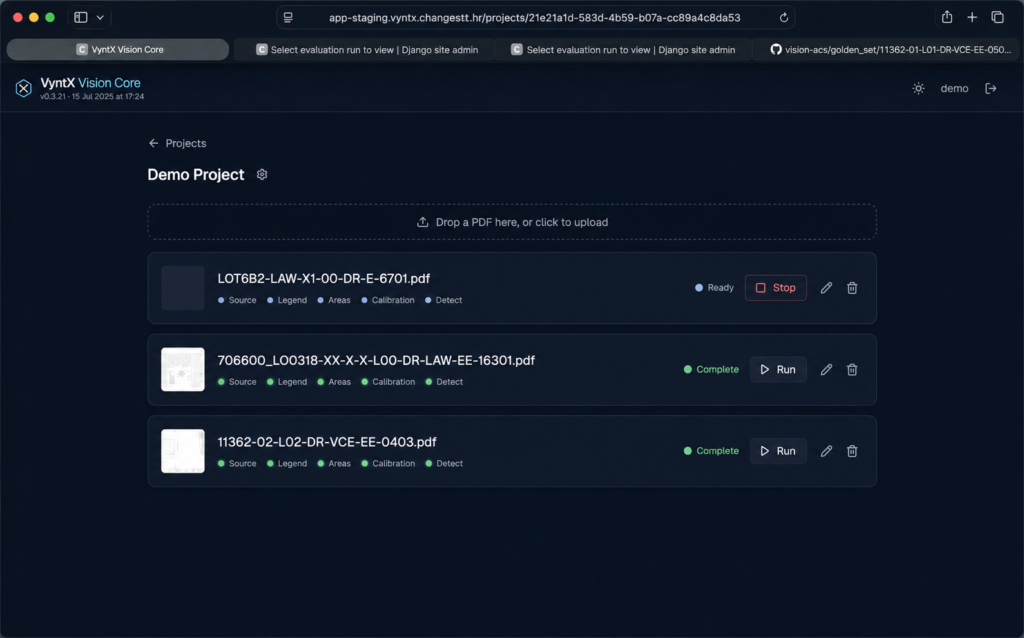

A short walkthrough of the current MVP: uploading a drawing package, calibrating against the legend, detecting symbols, reviewing exceptions and confirming the reviewed output after human confirmation.
01

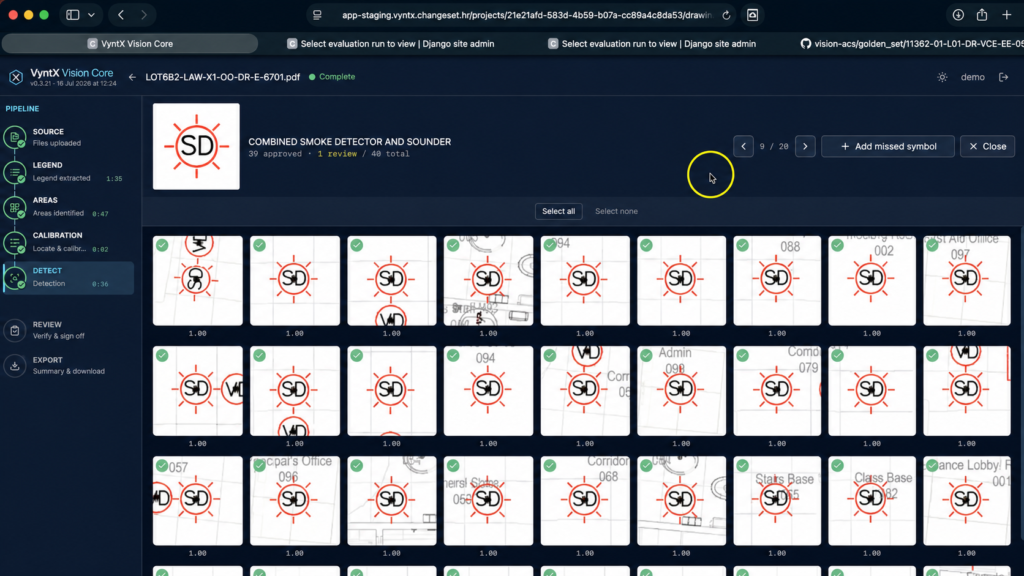

Assisted Detection. Relevant symbols are identified and converted into structured takeoff data.
02
03
Service Areas
Built Around Symbol-Based Construction Drawings
Electrical
Electrical drawing workflows, with broader coverage being developed as the platform matures.
Mechanical
Broader mechanical-services drawing packages, including relevant plumbing and general mechanical scope, where suitable.
Fire & Life Safety
Fire alarm, life-safety and related symbol-based drawing packages.
Security
Security, access control, CCTV, intruder and adjacent systems.
ICT, Data & AV
ICT, data, audio-visual and related symbol-based drawing packages.
Fire Sprinklers & Smoke Control / AOV
Fire sprinkler, smoke-control and AOV drawing packages where suitable.
Emergency Lighting
Emergency-lighting safety layouts within the wider electrical scope.
HVAC
Specialist heating, ventilation and air-conditioning drawing workflows, with coverage developing as the platform matures.
Coverage may vary by drawing package, drawing quality and the current stage of product development.
Human Control by Design
Technology Processes. Engineers Decide.

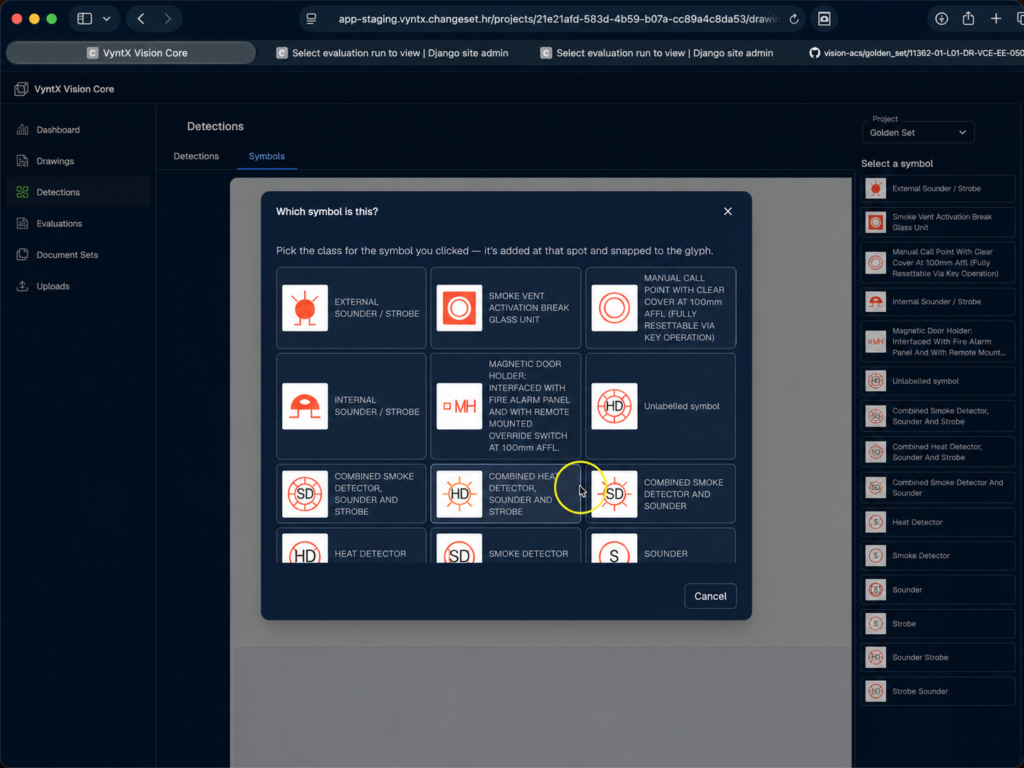

The review screen: every detection is checked, corrected and confirmed by the user before it becomes reviewed output.
01
Review Against the Source
Check detected information against the original drawing package.
02
Confidence-Led Review
Direct attention towards structured takeoff data that may require closer professional review.03
Transparent Corrections
Correct, reclassify and confirm information before it becomes reviewed output after user confirmation.
04
Final Human Approval
Nothing becomes reviewed output after user confirmation until the user has validated and approved it.Why VyntX
Built by People Who Have Done the Work.
VyntX Intelligence Ltd. was founded by construction professionals with direct experience across estimating, project management, procurement and delivery within the fire and security sector.
The platform was created from repeated exposure to the same operational problem: critical drawing information already existed, but extracting, checking and structuring it remained repetitive, fragmented and heavily dependent on manual effort.
Commercial and Project Perspective
VyntX combines construction workflow knowledge with project-management, commercial and business experience. The objective is not to automate professional judgement, but to reduce repetitive interpretation work and provide clearer information for estimating and project decisions.
Our Story
VyntX Vision Core was created to reduce the manual effort involved in reviewing real construction drawings and converting drawing information into structured, reviewable takeoff data. The product is being shaped around practical contractor workflows rather than theoretical automation.
Mission
To give construction professionals controlled engineering intelligence: tools that remove repetitive drawing interpretation work without removing professional judgement.
Vision
A construction industry where drawing information is structured, reviewable and trusted, so that estimating and delivery teams spend their time on decisions rather than counting.
Promise
No overstated claims and no hidden automation. Every VyntX output is transparent, reviewable and approved by the person accountable for it.
Not fewer engineers. Better-equipped engineers.
Human review against the source drawing before the output is approved.
